새로운 레이아웃 만들기, 카드뷰 넣기

/app/res/layout/layout1.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:orientation="horizontal">

    <ImageView
        android:id="@+id/imageView"
        android:layout_width="80dp"
        android:layout_height="80dp"
        tools:srcCompat="@tools:sample/avatars" />

    <LinearLayout
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_margin="5dp"
        android:layout_weight="1"
        android:orientation="vertical">

        <TextView
            android:id="@+id/textView"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_weight="1"
            android:text="이름"
            android:textSize="30sp" />

        <TextView
            android:id="@+id/textView2"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_weight="1"
            android:text="전화번호"
            android:textColor="#2196F3"
            android:textSize="25sp" />
    </LinearLayout>

</LinearLayout>





activity_main

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:orientation="horizontal">

    <ImageView
        android:id="@+id/imageView"
        android:layout_width="80dp"
        android:layout_height="80dp"
        tools:srcCompat="@tools:sample/avatars" />

    <LinearLayout
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_margin="5dp"
        android:layout_weight="1"
        android:orientation="vertical">

        <TextView
            android:id="@+id/textView"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_weight="1"
            android:text="이름"
            android:textSize="30sp" />

        <TextView
            android:id="@+id/textView2"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_weight="1"
            android:text="전화번호"
            android:textColor="#2196F3"
            android:textSize="25sp" />
    </LinearLayout>

</LinearLayout>



Layout1.java

package com.example.a43_layout;

import android.content.Context;
import android.util.AttributeSet;
import android.view.LayoutInflater;
import android.widget.ImageView;
import android.widget.LinearLayout;
import android.widget.TextView;

public class Layout1 extends LinearLayout {

    ImageView imageView;
    TextView textView;
    TextView textView2;

    public Layout1(Context context) {
        super(context);
        init(context);
    }

    public Layout1(Context context, AttributeSet attrs) {
        super(context, attrs);
        init(context);
    }

    private void init(Context context) {

//        일부 뷰만을 부분 객체화 함
        LayoutInflater inflater = (LayoutInflater) context.getSystemService((Context.LAYOUT_INFLATER_SERVICE));
        inflater.inflate(R.layout.layout1, this, true);

        imageView = findViewById(R.id.imageView);
        textView = findViewById(R.id.textView);
        textView2 = findViewById(R.id.textView2);
    }

    public void setImage(int resId) {

//        이미지뷰에 보이는 이미지를 변경하는 메소드
//        /app/res/drawable 폴더 안에 있는 이미지 파일을 참조하는 정수 값을 파라미터로 전달받음
//        house.png라는 이미지 파일이 있다면, @drawable/house 라는 리소스 id로 참조할 수 있는데,
//        이 id 값은 내부적으로 정수 값으로 표현됨
        imageView.setImageResource(resId);
    }

    public void setName(String name) {
        textView.setText(name);
    }

    public void setMobile(String mobile) {
        textView2.setText(mobile);
    }


}

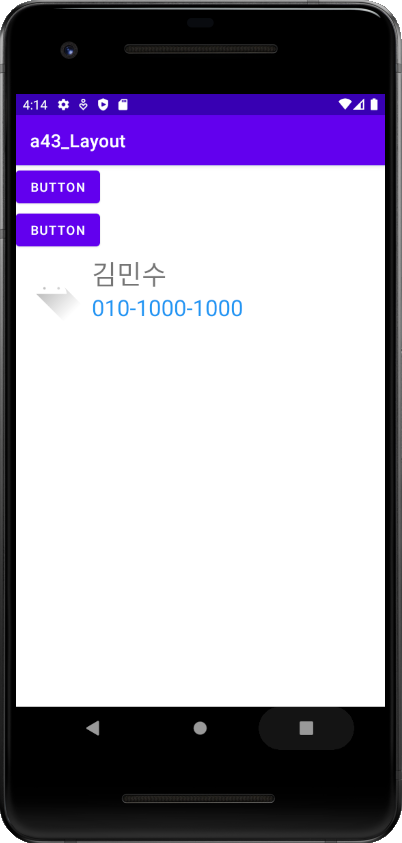

MainActivity

package com.example.a43_layout;

import androidx.appcompat.app.AppCompatActivity;

import android.os.Bundle;
import android.view.View;
import android.widget.Button;

public class MainActivity extends AppCompatActivity {

    Layout1 layout1;


    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        layout1 = findViewById(R.id.layout1);

        layout1.setImage(R.drawable.ic_launcher_foreground);
        layout1.setName("김민수");
        layout1.setMobile("010-1000-1000");

        Button button = findViewById(R.id.button);
        button.setOnClickListener(new View.OnClickListener() {

            @Override
            public void onClick(View v) {
                layout1.setImage(R.drawable.profile1);
            }
        });

        Button button2 = findViewById(R.id.button2);
        button2.setOnClickListener(new View.OnClickListener() {

            @Override
            public void onClick(View v) {
                layout1.setImage(R.drawable.profile2);
            }
        });
    }
}

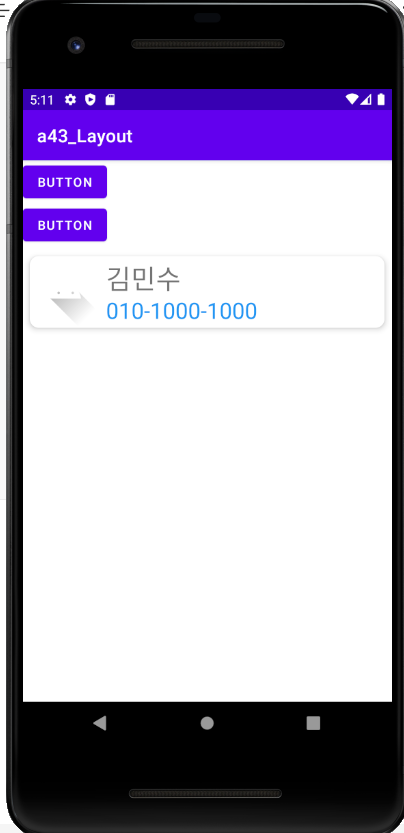

Layout1의 모양을 카드뷰 모양으로 바꾸기

카드뷰는 프로필과 같은 간단 정보를 넣기 위해 각 영역을 구분하는 역할을 한다

    <androidx.cardview.widget.CardView
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        app:cardBackgroundColor="#FFFFFFFF"
        app:cardCornerRadius="10dp"
        app:cardElevation="5dp"
        app:cardUseCompatPadding="true">



cardCornerRadius - 모서리 둥글게 설정

cardElevation - 뷰가 올라온 느낌이 들게 함

cardUseCompatPadding - 기본 패딩 적용





layout1.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:orientation="vertical">


    <androidx.cardview.widget.CardView
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        app:cardBackgroundColor="#FFFFFFFF"
        app:cardCornerRadius="10dp"
        app:cardElevation="5dp"
        app:cardUseCompatPadding="true">

        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="horizontal">

            <ImageView
                android:id="@+id/imageView"
                android:layout_width="80dp"
                android:layout_height="80dp"
                tools:srcCompat="@tools:sample/avatars" />

            <LinearLayout
                android:layout_width="match_parent"
                android:layout_height="match_parent"
                android:layout_margin="5dp"
                android:layout_weight="1"
                android:orientation="vertical">

                <TextView
                    android:id="@+id/textView"
                    android:layout_width="match_parent"
                    android:layout_height="wrap_content"
                    android:layout_weight="1"
                    android:text="이름"
                    android:textSize="30sp" />

                <TextView
                    android:id="@+id/textView2"
                    android:layout_width="match_parent"
                    android:layout_height="wrap_content"
                    android:layout_weight="1"
                    android:text="전화번호"
                    android:textColor="#2196F3"
                    android:textSize="25sp" />
            </LinearLayout>

        </LinearLayout>

    </androidx.cardview.widget.CardView>


</LinearLayout>
